Description

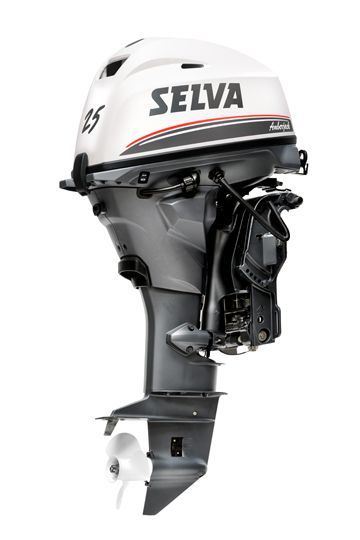

Extremely compact engine, it is the lightest in its class and offers an unmatched weight/power ratio. It adopts an electronic fuel injection system (EFI) which, in the models with manual starting, works without the need to have a battery. Extremely efficient and moderate in consumption, it integrates a 190W alternator, guarantees a plentiful availability of recharging even during prolonged idling uses. Also available in the version with power trim/tilt for a better and more comfortable engine trim position.
Specifications
- Power Hp: 25 EFI
- Power Kw: 18.4
- Max. R.P.M.: 5000 /6000
- Motor type: 4 stroke OHV
- Swept volume c.c.: 432
Technical features and equipment
| Bore x Stroke (mm) | 65 x 65.1 |
| N° Cylinders | 2 in-line |
| Induction | Electronic injection |
| Starting | Automatic |
| Fuel | Petrol (for specifications see the user manual) |
| Fuel tank (L) | Separate 23 |
| Lubrication | Forced (oil sump) |
| Ignition | C.D.I. Micro computer |
| Ignition timing | Electronic |
| Starting | Manual or Electric |
| Alternator | Standard 12V/190W (regulator optional) on Manual start version Standard 12V/190W with regulator on Electric start version |
| Cooling | Water cooled with pump-forced circulation |
| Exhaust | Underwater through propeller |
| Steering system | Tiller bar steering with twist grip throttle control and steering friction adjustment or remote with remote control box according to version |
| Trim adjustment | Manual (4 pos) with trim for navigation in shallow waters or Power Tilt depending on the version |
| Gears | Mechanical F-N-R |
| Transmission ratio | 13/27 |
| Available shaft versions | C. – L. |
| Standard propeller type | 3-bladed with built-in spring drive |
| Weight basic version (Kg) | 56 |
