Description

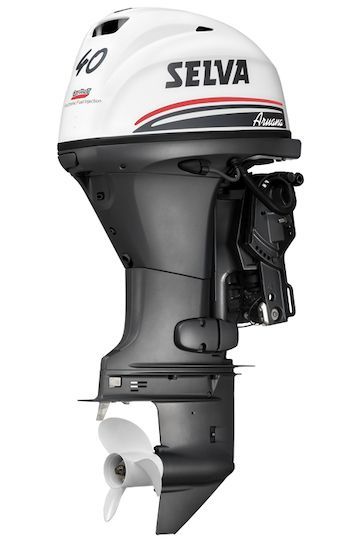

Reliable, light and easy to use. This 747 cc 3-cylinder integrates an electronic fuel injection (EFI) system that combines power with high speeds and excellent torque at medium speeds with exceptional reliability and cost-saving. Available in remote control version with Power Trim/Tilt or with Tiller handle and hydraulic assist manual trim and tilt system.
Specifications
- Power Hp: 40 EFI
- Power Kw: 29.4
- Max. R.P.M.: 5000 – 6000
- Motor type: 4 stroke SOHC
- Swept volume c.c.: 747
Technical features and equipment
| Bore x Stroke (mm) | 65×75 |
| N° Cylinders | 3 on line |
| Induction | Electonic Injection |
| Starting | Automatic |
| Fuel | Petrol (for specifications see the user manual) |
| Fuel tank (L) | Separate 23 |
| Lubrication | Forced (Oil sump) |
| Ignition | T.C.I./Computer |
| Ignition timing | Electronic |
| Starting | Electric |
| Alternator | Standard 12V / 190W with regulator |
| Cooling | Water cooled with pump-forced circulation |
| Exhaust | Under-water through propeller |
| Steering system | Bar with twist grip throttle control and steering frictionadjustment or remote with remote control box,depending on the version |
| Type of remote control box provided (for the version with remote control box) | Single lever with safety switch |
| Trim adjustment | Power trim with hydraulic damperor Power Trim/Tilt depending on the version |
| Direction reversal | Mechanical A-F-R |
| Transmission Ratio | 13/26 |
| Available shaft versions | L. |
| Standard propeller type | 3-bladed with built-in spring drive |
| Weight basic version (kg.) | 99 |
