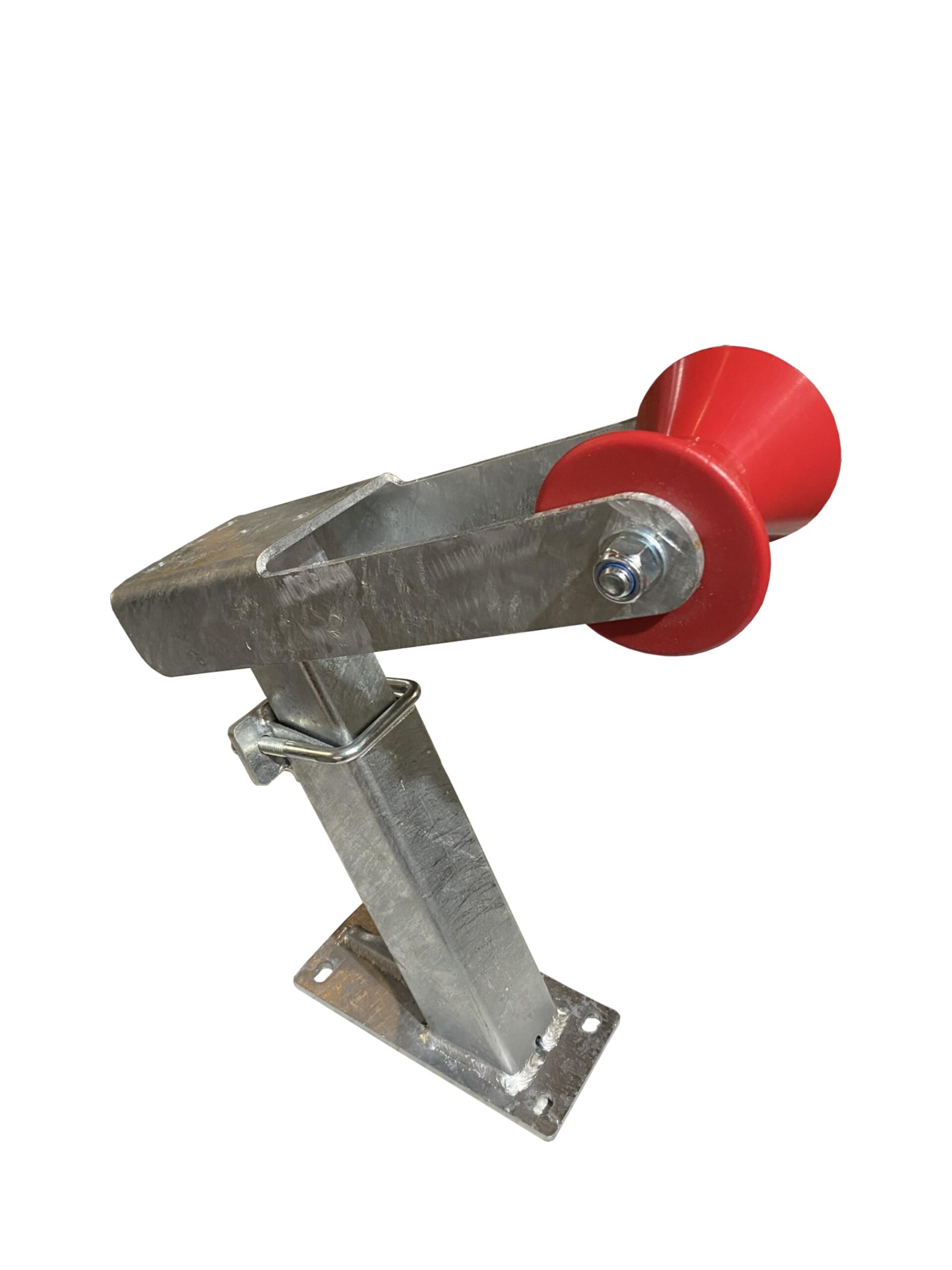

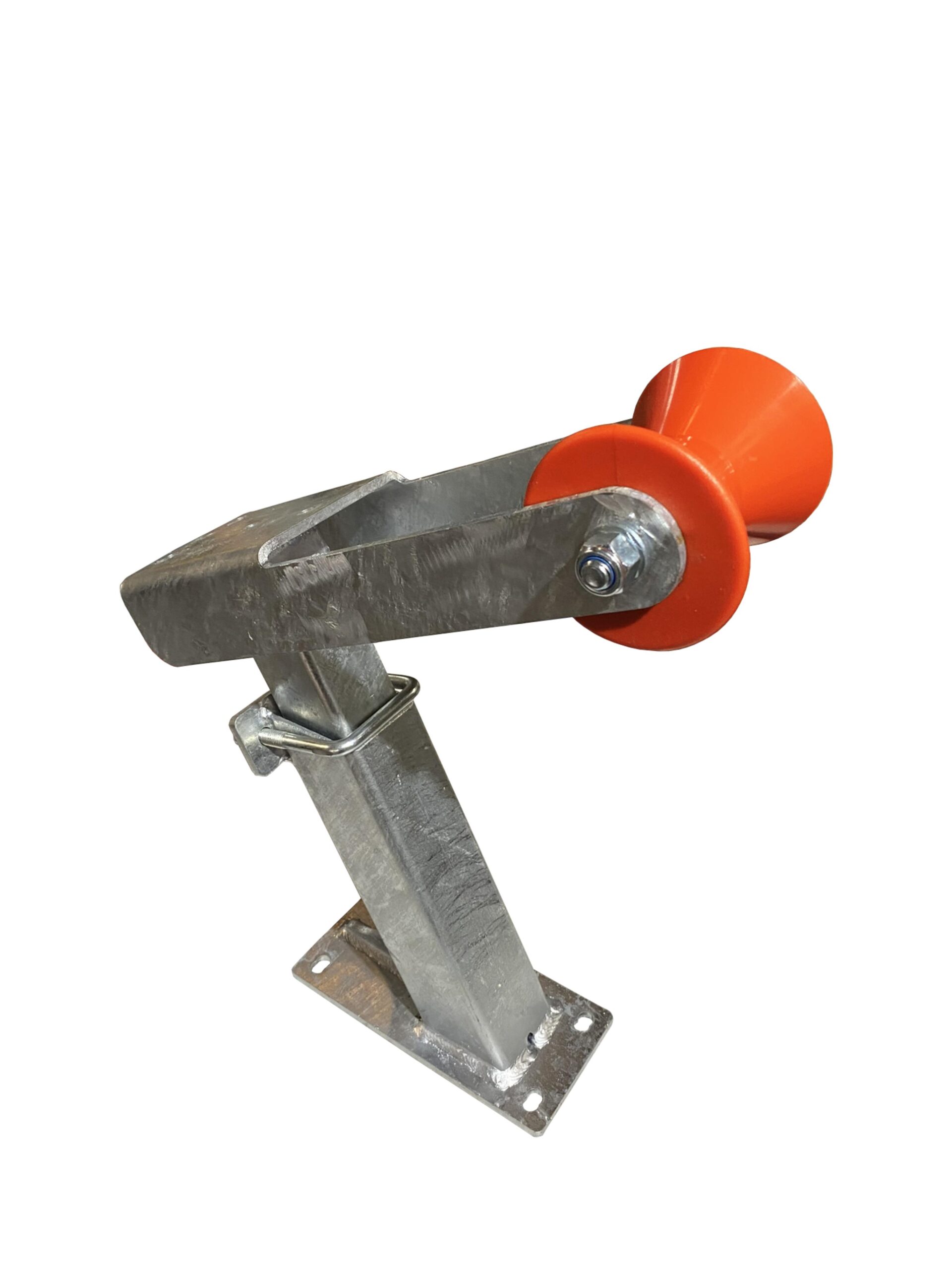

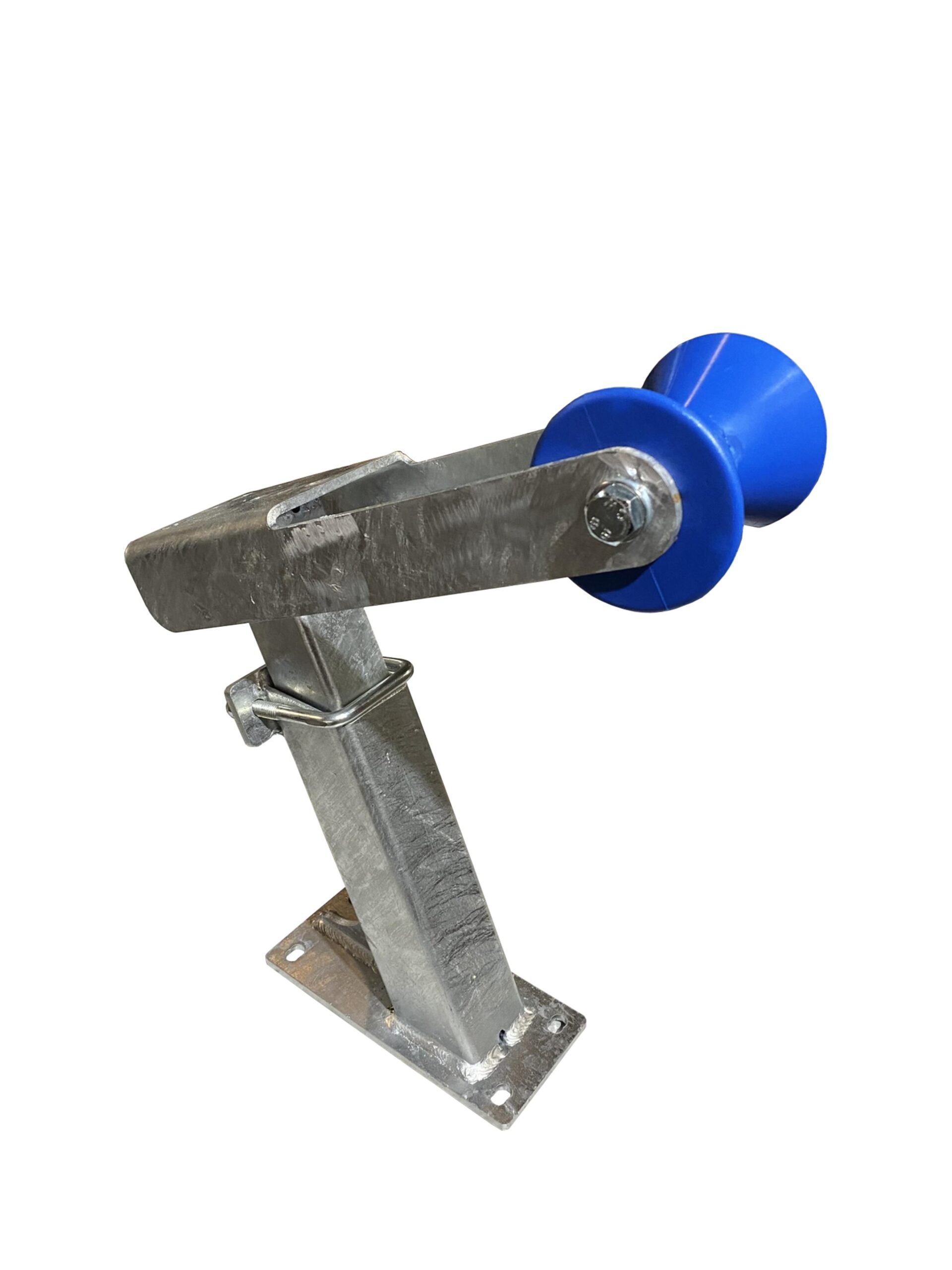

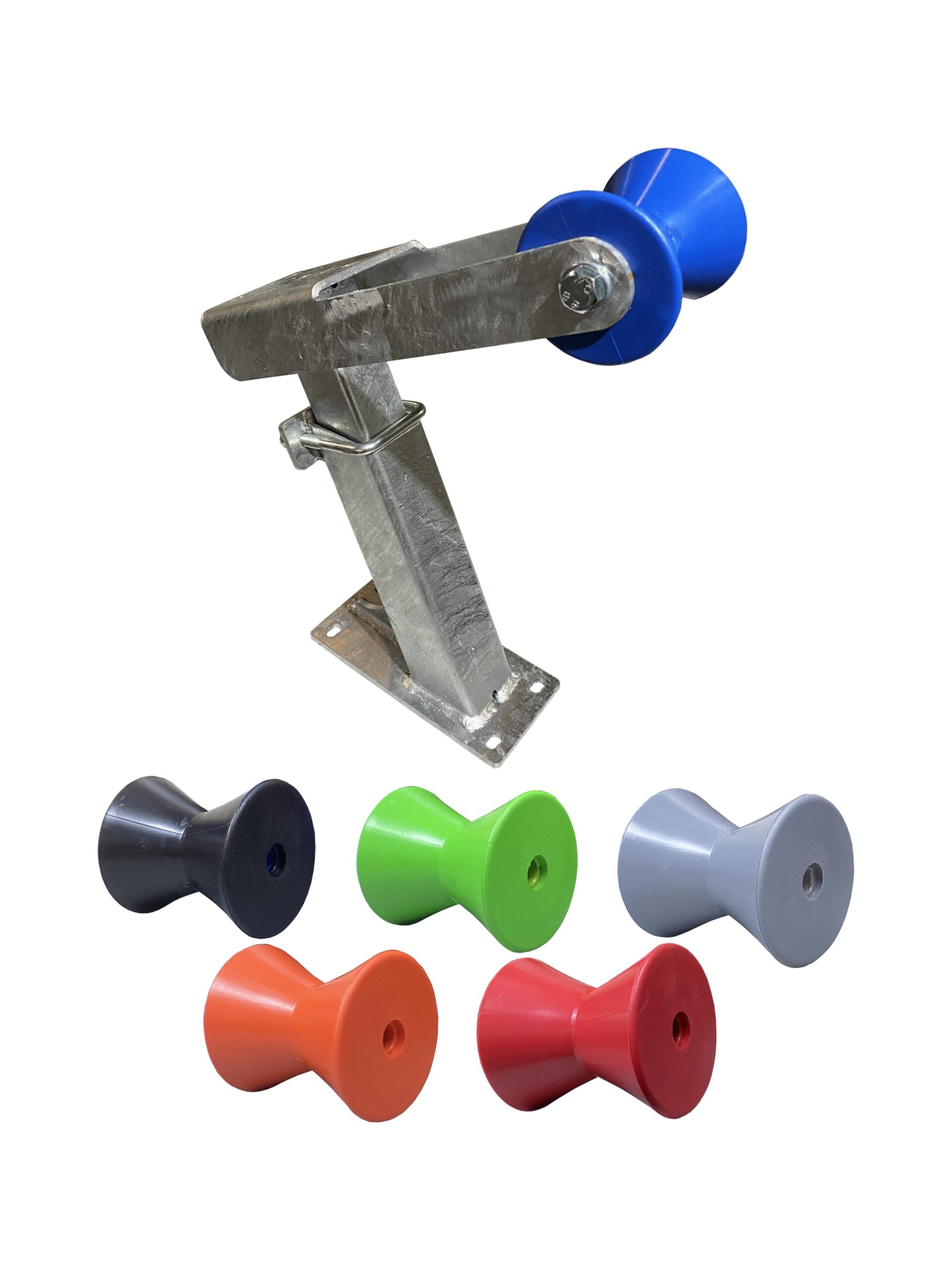

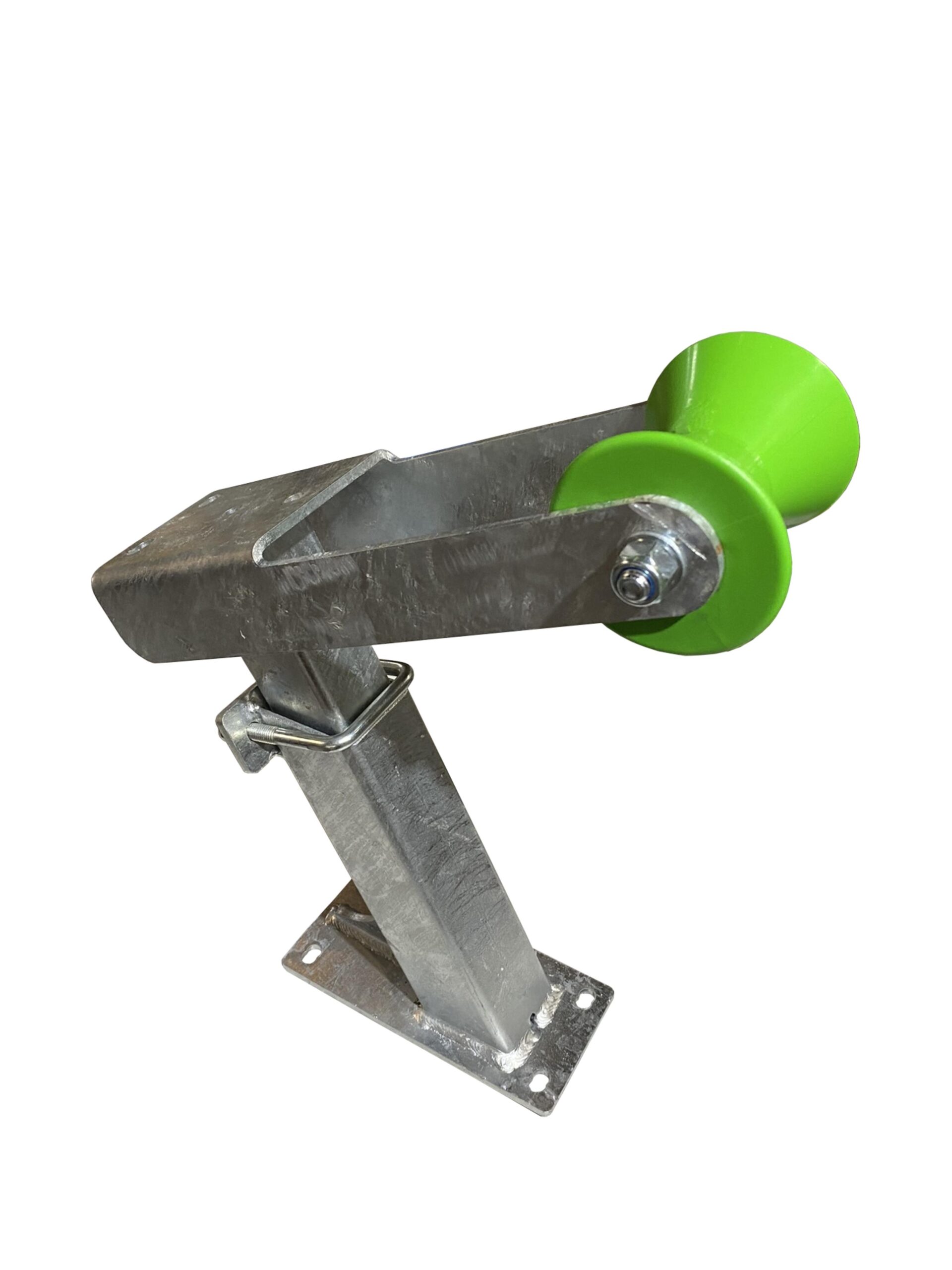

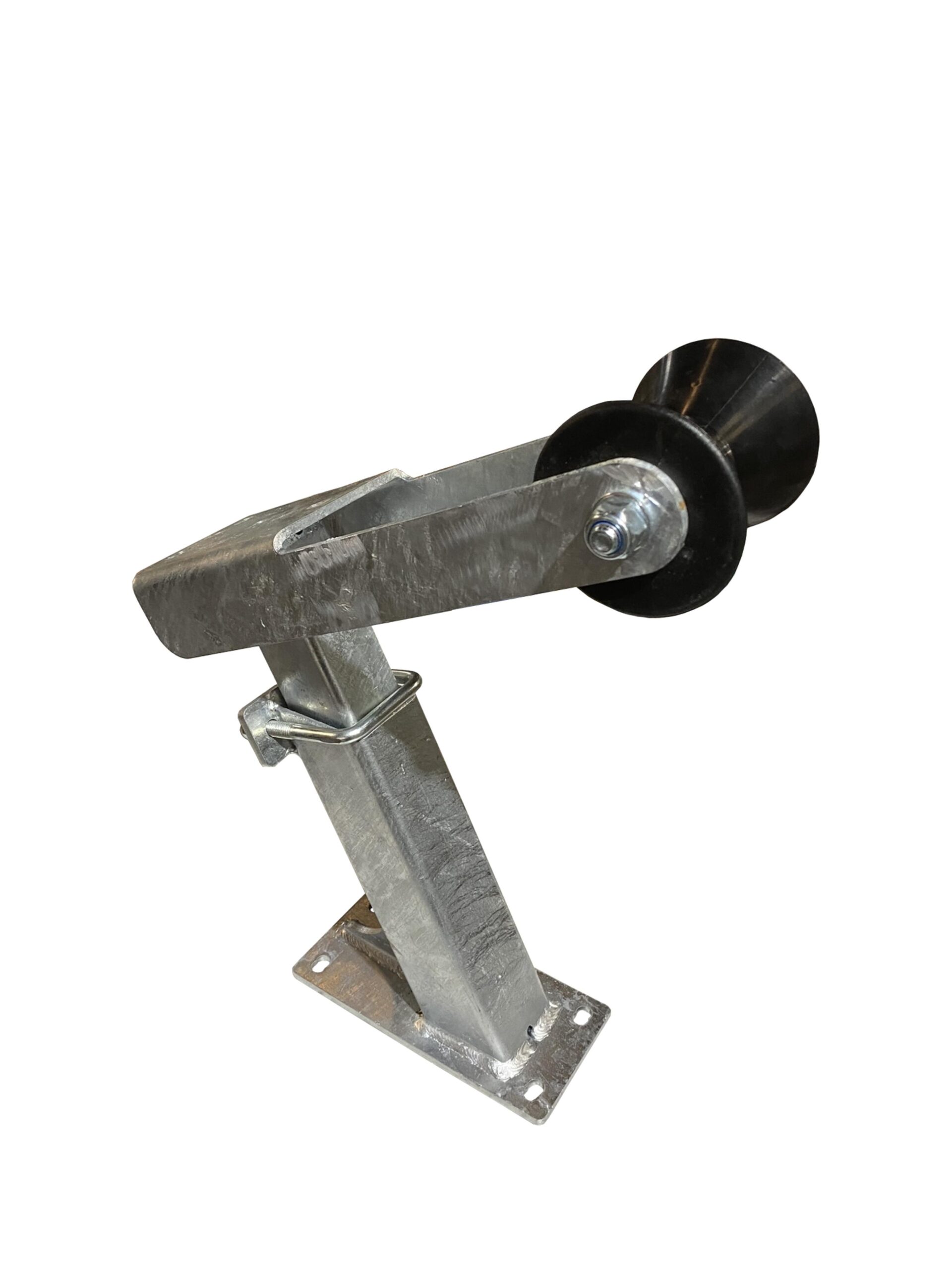

Medium Adjustable Winch Post

Description

Medium height adjustable, fully galvanised steel winch post to suit all draw bars with a 50mm or 60mm box section.

Suitable for trailers up to the 750kg range.

The post height to suit –

Minimum at 420mm (snubber centre)

Maximum at 480mm (snubber centre)

Bow eye to keel measurements:

Minimum: 530mm

Maximum: 660mm

Suitable for 1400lb Dutton single speed winches.

U bolts available, please see our U bolt section.

For 50mm x 50mm box section use 61x75mm.

For 75mm x 50mm box section use 61x100mm.

For 60mm x 60mm box section use 71x85mm.
