Description

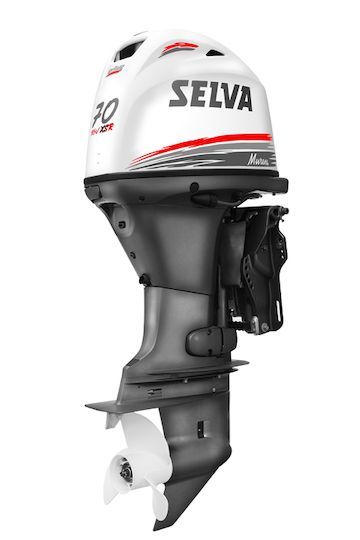

Outboard 70 Hp of 996 cc, with single-shaft distribution by 16V. It adopts a robust transmission, with a special ratio at the gearbox to have the possibilities to use large diameter propellers that allow the best boost performance. Developed by the Selva’s development Department, this XSR version is refined with a very accurate setup, which gives a grit drive that is second to none.
Specifications
- Power Hp: 70 EFI XSR
- Power Kw: 51.5
- Max. R.P.M.: 5300 / 6300
- Motor type: 4 stroke SOHC 16V
- Swept volume c.c.: 996
Technical features and equipment
| Bore x Stroke (mm) | 65×75 |
| N° Cylinders | 4 on line |
| Induction | Electonic Injection |
| Starting | Automatic |
| Fuel | Petrol (for specifications see the user manual) |
| Fuel tank (L) | Separate 23 |
| Lubrication | Forced (Oil sump) |
| Ignition | T.C.I./Computer |
| Ignition timing | Electronic |
| Starting | Electric |
| Alternator | Standard 12V / 200W with regulator |
| Cooling | Water cooled with pump-forced circulation |
| Exhaust | Under-water through propeller |
| Steering system | Remote with remote control box |
| Type of remote control box provided (for the version with remote control box) | Single lever with safety switch |
| Trim adjustment | Power Trim/Tilt |
| Direction reversal | Mechanical A-F-R |
| Transmission Ratio | 12/28 |
| Available shaft versions | L. |
| Standard propeller type | 3-bladed with built-in spring drive |
| Weight basic version (kg.) | 119 |
