Description

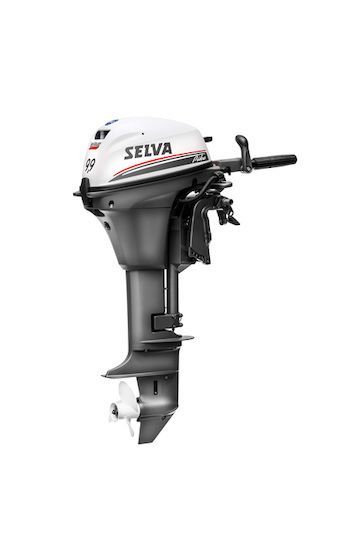

Easy to transport with built-in transport handles, this twocylinder model is the ideal solution for all types of sailing: fishing, diving, leisure, professional use or simply family use; it is also an ideal solution for sailing boats. New operating standards with regard to noise level and low fuel consumption, the Pike is a winning combination of performance and transportability.
Specifications
- Power Hp: 9,9
- Power Kw: 7,3
- Max. R.P.M.: 5000/6000
- Motor type: 4 stroke SOHC
- Swept volume c.c.: 212
Technical features and equipment
| Bore x Stroke (mm) | 56 x 43 |
| N° Cylinders | 2 on line |
| Induction | 1 carburettor |
| Starting | Manual |
| Fuel | Petrol (for specifications see the user manual) |
| Fuel tank (L) | Separate 12 |
| Lubrication | Forced (oil sump) |
| Ignition | C.D.I. Micro-computer |
| Ignition timing | Electronic |
| Starting | Manual or Electric |
| Alternator | Standard 12V/70W (regulator optional) on Manual start version. Standard 12V/70W with regulator on Electric start version |
| Cooling | Water cooled with pump-forced circulation |
| Exhaust | Underwater through propeller |
| Steering system | Bar with twist grip throttle control and steering friction adjustment or remote with remote control box according to version |
| Type of remote control box provided (for the version with remote control box) | Single lever with safety switch |
| Trim adjustment | Manual (4 pos)with trim for navigation in shallow waters |
| Direction reversal | Mechanical A-F-R |
| Transmission Ratio | 13/27 |
| Available shaft versions | C. – L. |
| Standard propeller type | 3-bladed with built-in spring drive |
| Weight basic version (kg.) | 39,9 |
