Description

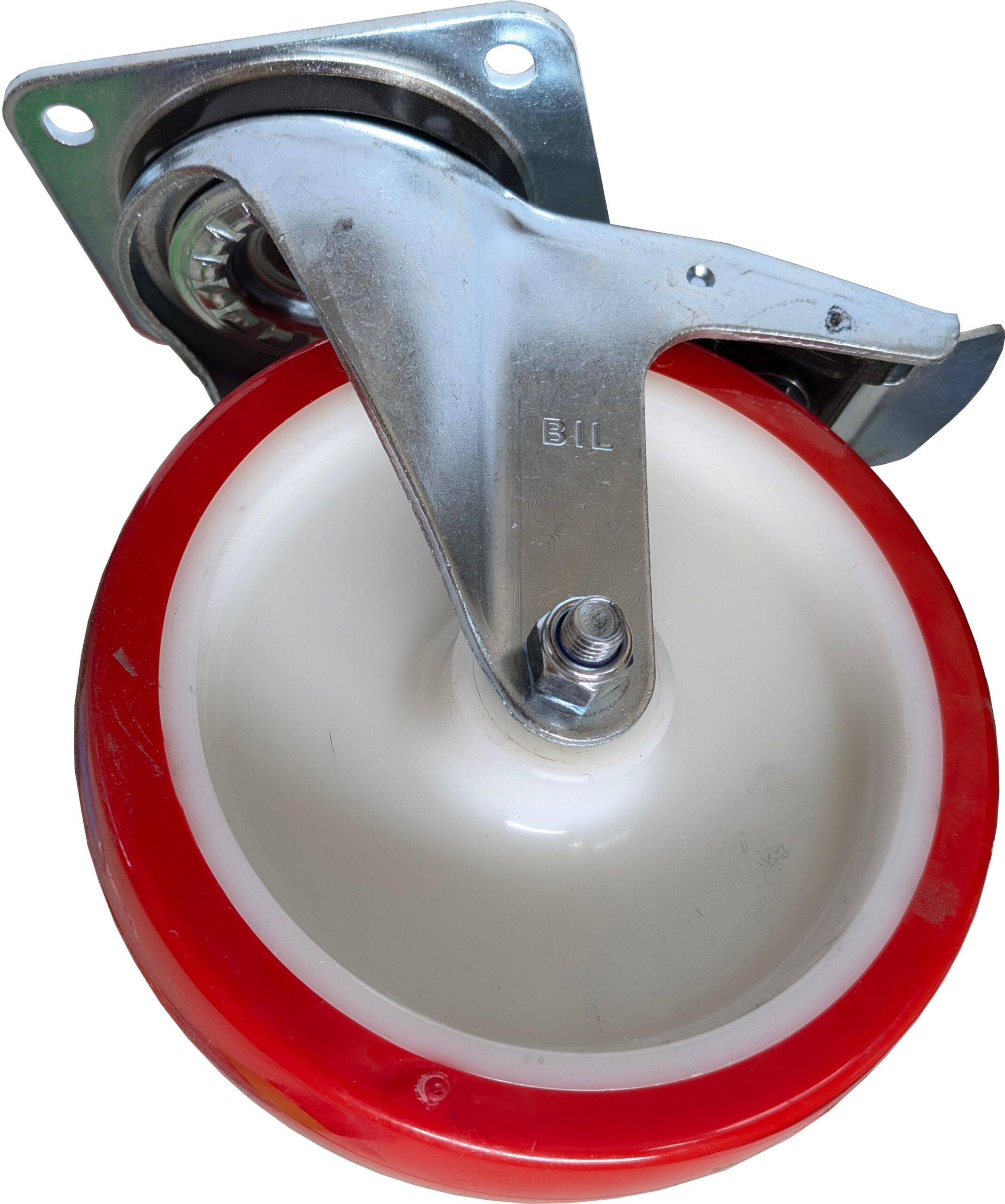

Pressed steel swivel castor with a top plate fixing fitted with a red polyurethane on white nylon centred wheel with roller bearings and total lock brake. Wheel diameter 200mm, tread width 48mm, overall height 238mm, top plate 135mm x 110mm, hole centres 105mm x 80/75mm. Load capacity 500kg.
| Bearing Type |
Roller |
|---|---|
| Castor Type |
Swivel with Total Lock Brake |
| Colour / Shore Hardness |
Red Polyurethane on Nylon Rim / 96 Shore A |
| Diameter (mm) |
200 |
| Fixing Option |
Plate |
| Fork Thickness (mm) |
5 |
| Height (mm) |
238 |
| Hole Centres (mm) |
105 x 80/75 |
| Load Capacity (kg) |
500 |
| Plate Size (mm) |
135 x 115 |
| Swivel Radius (mm) |
165 |
| Temperature Resistance |
-20 °C TO +70 °C |
| To Suit Fixing Bolt (mm) |
10 |
| Top Plate Thickness (mm) |
5 |
| Tread (mm) |
48 |
| Weight | 3.075 kg |
| Wheel Material |
Polyurethane on Nylon |
