Description

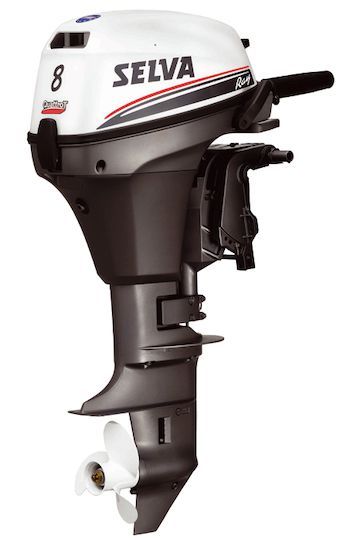

Recreation boating is even more fun if entrusted to a light, reliable motor that is easy to command and comes with simple operating systems. Ray 8 is all this and more – it is a safe outboard motor with reduced fuel consumption. Its large, convenient handles for transport also make it an inseparable boating companion for unforgettable moments of relax and fun.
Specifications
- Power Hp: 8
- Power Kw: 5,9
- Max. R.P.M.: 5000/6000
- Motor type: 4 stroke SOHC
- Swept volume c.c.: 212
Technical features and equipment
| Bore x Stroke (mm) | 56×43 |
| N° Cylinders | 2 on line |
| Induction | 1 carburettor |
| Starting | Manual |
| Fuel | Petrol (for specifications see the user manual) |
| Fuel tank (L) | Separate 12 |
| Lubrication | Forced (oil sump) |
| Ignition | C.D.I. Micro-computer |
| Ignition timing | Electronic |
| Starting | Manual |
| Alternator | Standard 12V/70W with regulator |
| Cooling | Water cooled with pump-forced circulation |
| Exhaust | Underwater through propeller |
| Steering system | Bar with twist grip throttle control and steering friction adjustment |
| Type of remote control box provided (for the version with remote control box) | Accessory, Single lever |
| Trim adjustment | Manual (4 pos)with trim for navigation in shallow waters |
| Direction reversal | Mechanical A-F-R |
| Transmission Ratio | 13/27 |
| Available shaft versions | C. – L. |
| Standard propeller type | 3-bladed with built-in spring drive |
| Weight basic version (kg.) | 39,9 |
