Description

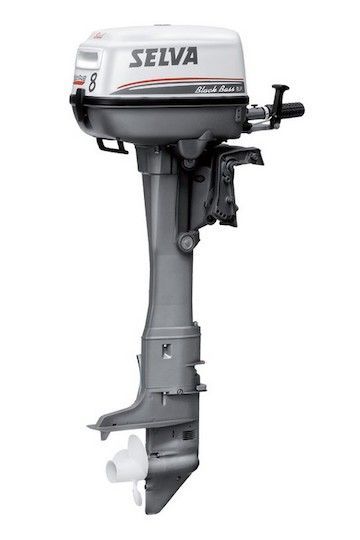

It combines light weight and compactness of a typical single cylinder to the possibility of installation on boats with higher drafts. Its Extra Long shaft and the possibility of a remote control makes it the ideal companion for applications which require easy installation and operating capabilities such as sailboats.
Specifications
- Power Hp: 8
- Power Kw: 5,9
- Max. R.P.M.: 5500 / 6000
- Motor type: 4 stroke SOHC
- Swept volume c.c.: 165
Technical features and equipment
| Bore x Stroke (mm) | 63 x 53 |
| N° Cylinders | 1 |
| Induction | 1 carburettor |
| Starting | Manual or Electrical |
| Fuel | Petrol (for specifications see the user manual) |
| Fuel tank (L) | Separate 12 |
| Lubrication | Forced with mechanical lobe-pump |
| Ignition | C.D.I. Digital |
| Ignition timing | Electronic |
| Starting | Manual or Electrical |
| Alternator | Optional 12V/70W with rectifier on Manual start versionStandard 12V/70W with rectifier on Electric start version |
| Cooling | Water cooled with pump-forced circulation |
| Exhaust | Underwater through propeller |
| Steering system | Bar with twist grip throttle control and steering friction adjustment or remote with remote control box |
| Type of remote control box provided (for the version with remote control box) | Single lever with safety switch |
| Trim adjustment | Manual (4 pos)with trim for navigation in shallow waters |
| Direction reversal | Mechanical A-F-R |
| Transmission Ratio | 13/27 |
| Available shaft versions | XL. |
| Standard propeller type | 3-bladed with built-in spring drive |
| Weight basic version (kg.) | 32 |
