Description

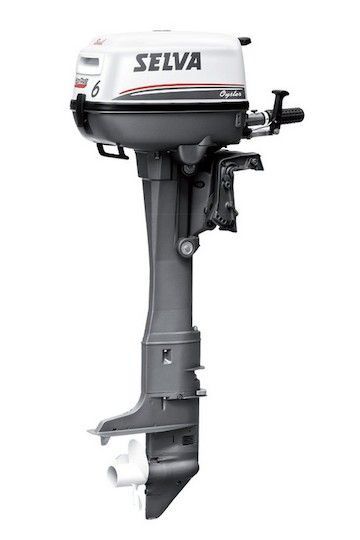

Designed mainly to be used as an auxiliary motor on sailboats, this new 2012 model adds to strenght and compactness, typical of the model, its high draft given by the Extra Long shaft.
Specifications
- Power Hp: 6
- Power Kw: 4,4
- Max. R.P.M.: 5500 / 6000
- Motor type: 4 stroke SOHC
- Swept volume c.c.: 135
Technical features and equipment
| Bore x Stroke (mm) | 57 x 53 |
| N° Cylinders | 1 |
| Induction | 1 carburettor |
| Starting | Manual or Electrical |
| Fuel | Petrol (for specifications see the user manual) |
| Fuel tank (L) | Separate 12 |
| Lubrication | Forced with mechanical lobe-pump |
| Ignition | C.D.I. Digital |
| Ignition timing | Electronic |
| Starting | Manual or Electric |
| Alternator | Optional 12V/70W with rectifier on Manual start versionStandard 12V/70W with rectifier on Electric start version |
| Cooling | Water cooled with pump-forced circulation |
| Exhaust | Underwater through propeller |
| Steering system | Bar with twist grip throttle control and steering friction adjustment or remote with remote control box |
| Type of remote control box provided (for the version with remote control box) | Single lever with safety switch |
| Trim adjustment | Manual (4 pos)with trim for navigation in shallow waters |
| Direction reversal | Mechanical A-F-R |
| Transmission Ratio | 13/27 |
| Available shaft versions | XL. |
| Standard propeller type | 3-bladed with built-in spring drive |
| Weight basic version (kg.) | 32 |
